User interface script for data collection and reception from Nucleo. More...

Functions
def	userInterfaceFrontW3.gCallback (key)
	Callback function for the 'g' key release. More...

def	userInterfaceFrontW3.sCallback (key)
	Callback function for the 's' key press. More...

def	userInterfaceFrontW3.pCallback (key)
	Callback function for the 'p' key press. More...

def	userInterfaceFrontW3.dCallback (key)
	Callback function for the 'd' key press. More...

def	userInterfaceFrontW3.zCallback (key)
	Callback function for the 'z' key press. More...

def	userInterfaceFrontW3.aCallback (key)
	Callback function for the 'a' key press. More...

def	userInterfaceFrontW3.kCallback (key)
	Callback function for the 'k' key press. More...

def	userInterfaceFrontW3.fCallback (key)
	Callback function for the 'f' key press. More...

def	userInterfaceFrontW3.oCallback (key)
	Callback function for the 'o' key press. More...

Variables
	userInterfaceFrontW3.last_key = None
	Keeping track of last key actuated.

int	userInterfaceFrontW3.n = 0
	Counting variable.

list	userInterfaceFrontW3.dataSet = []
	Housing for data before it is cleaned.

	userInterfaceFrontW3.actualTime = array('f', [])
	Actual time data that is read in through serial.

	userInterfaceFrontW3.position = array('f', [])
	Position values that are read in through serial.

	userInterfaceFrontW3.omega = array('f', [])
	Omega values that are read in through serial.

	userInterfaceFrontW3.Kp = array('f', [])
	Kp values that are read in through serial.

	userInterfaceFrontW3.desOmega = array('f', [])
	Desired Omega values that are read in through serial.

	userInterfaceFrontW3.ser = serial.Serial(port='COM9',baudrate=115273,timeout=.25)
	Serial object to communicate through VCP port.

	userInterfaceFrontW3.gCallback

	userInterfaceFrontW3.sCallback

	userInterfaceFrontW3.pCallback

	userInterfaceFrontW3.dCallback

	userInterfaceFrontW3.zCallback

	userInterfaceFrontW3.aCallback

	userInterfaceFrontW3.kCallback

	userInterfaceFrontW3.fCallback

	userInterfaceFrontW3.oCallback

	userInterfaceFrontW3.value = ser.readline().decode()
	Individual line read from Nucleo which would contain a variety of entries.

	userInterfaceFrontW3.POSITIONVALUE = value
	Position value recieved from Nucleo.

	userInterfaceFrontW3.DELTAVALUE = value
	Delta value recieved from Nucleo.

	userInterfaceFrontW3.ZEROTEXT = value
	Message saying the encoder has been zeroed.

	userInterfaceFrontW3.KPVALUE = value
	Kp value recieved from Nucleo.

	userInterfaceFrontW3.TIMEDELTA = value
	Time delta value recieved from Nucleo.

	userInterfaceFrontW3.OMEGA = value
	Omega value recieved from Nucleo.

	userInterfaceFrontW3.newline
	Assists in writing new line to .csv.

	userInterfaceFrontW3.writer = csv.writer(csvfile)
	CSV writer object that can use .writerow to write into my CSV file.

Detailed Description

User interface script for data collection and reception from Nucleo.

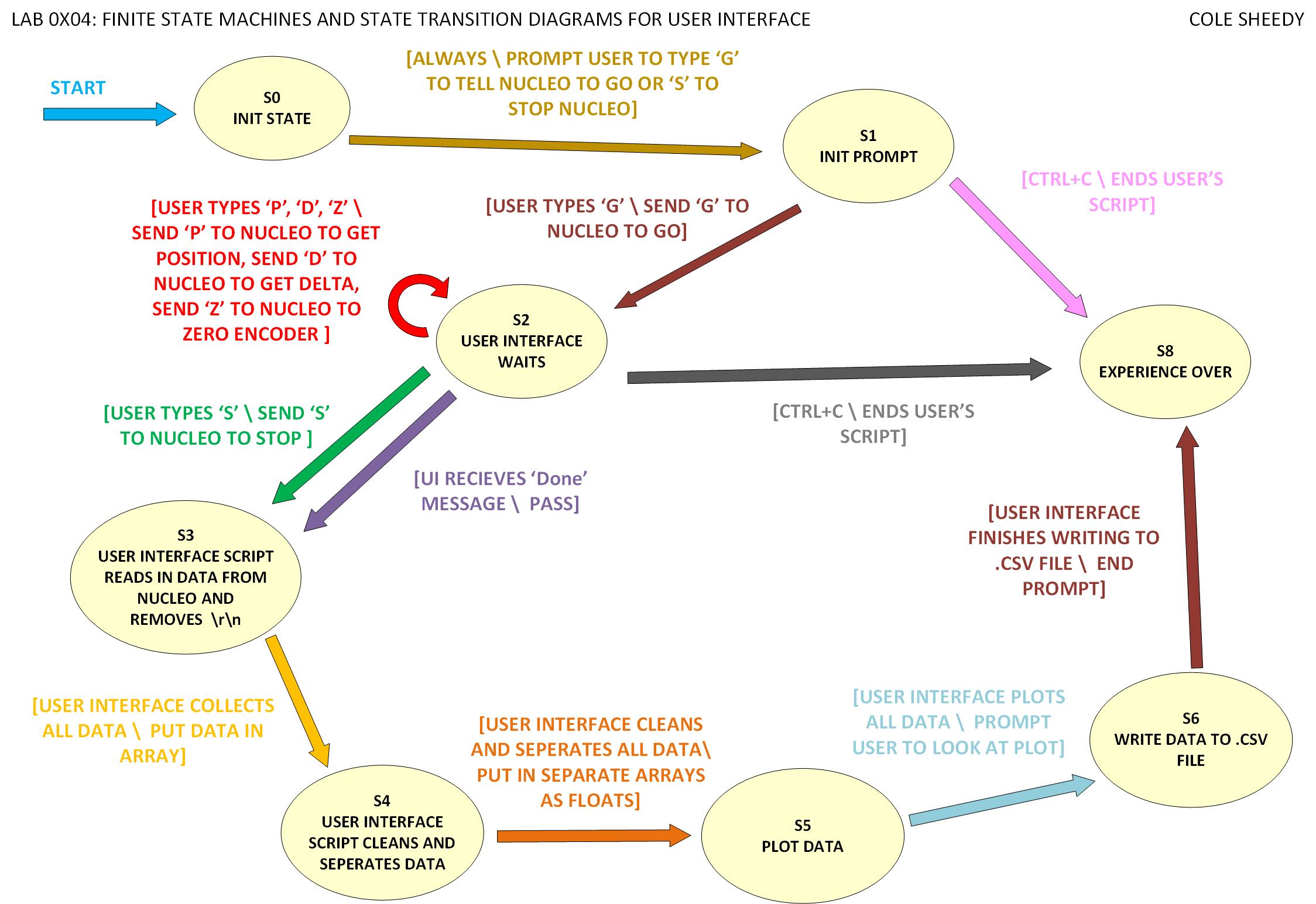

UI Front End Finite State Machine Diagram

Author: Cole Sheedy

Date: 3/16/2021

Copyright: License info here.

Function Documentation

◆ aCallback()

def userInterfaceFrontW3.aCallback ( key )

Callback function for the 'a' key press.

If user presses the 'a' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'a' and then send a Kp value for tuning. This can only be done before motor starts. If done after the default Kp will be 0.5

◆ dCallback()

def userInterfaceFrontW3.dCallback ( key )

Callback function for the 'd' key press.

If user presses the 'd' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'd' to the Nucleo to print the corrected delta value of the encoder.

◆ fCallback()

def userInterfaceFrontW3.fCallback ( key )

Callback function for the 'f' key press.

If user presses the 'f' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'f' to the Nucleo to retrieve the most recent time delta.

◆ gCallback()

def userInterfaceFrontW3.gCallback ( key )

Callback function for the 'g' key release.

If user presses the 'g' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'g' to the Nucleo to start data collection when the user decides to.

◆ kCallback()

def userInterfaceFrontW3.kCallback ( key )

Callback function for the 'k' key press.

If user presses the 'k' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'k' to the Nucleo to retrieve the current Kp value.

◆ oCallback()

def userInterfaceFrontW3.oCallback ( key )

Callback function for the 'o' key press.

If user presses the 'o' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'o' to the Nucleo to retrieve the most recent omega value.

◆ pCallback()

def userInterfaceFrontW3.pCallback ( key )

Callback function for the 'p' key press.

If user presses the 'p' key down, the keyboard function will be enabled. We will use this callback function to send the letter '' to the Nucleo to print the position of the encoder.

◆ sCallback()

def userInterfaceFrontW3.sCallback ( key )

Callback function for the 's' key press.

If user presses the 's' key down, the keyboard function will be enabled. We will use this callback function to send the letter 's' to the Nucleo to start data collection when the user decides to.

◆ zCallback()

def userInterfaceFrontW3.zCallback ( key )

Callback function for the 'z' key press.

If user presses the 'z' key down, the keyboard function will be enabled. We will use this callback function to send the letter 'z' to the Nucleo to zero the position of the encoder.
